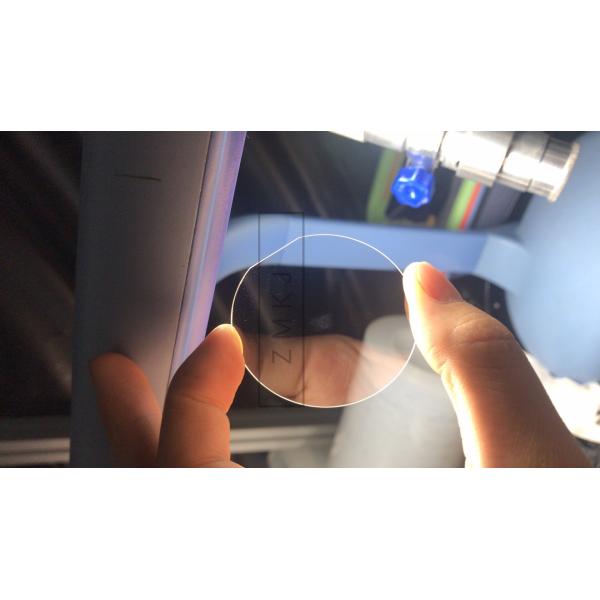

2inch M-axis 0.5mm thickness sapphire wafer for epi-ready test ,sapphire optical windows, M-axis 2inch sapphire epi-ready substrate
1. Description
Sapphire is one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.It is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc.The sapphire crystal window is intensively applied in high-tech fields.
Sapphire optical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration. Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant. It has high compressive strength and a high melting point. It is also resistant to UV radiation darkening.
sapphire application: sapphire optical lens ,sapphire ball, sapphire bearing ,sapphire led wafer, sapphire watch glass lens.
Specification:
- Single crystal Al2O3 99.999％
- Orientation: m-axis 0.2°
- Diameter:50.8±0.2mm
- Thickness :430±15um or 330±15um or 500um±15um
- Primary flat:16±1mm
- TTV:＜10um BOW:-10~0um WARP:＜10um
- OF Orientation flat: C axis ±0.2° C-plane(0001)
- Frontside Surface Roughness:Ra＜0.3nm
- Backside Surface Roughness: 0.8~1.2um
- ( Or double side polished, both side Ra＜0.3nm)
- Laser Mark Series No. by needs
- Package:Vacuum-sealed containers with nitrogen backfill in a class 100 environment
- Cleanliness :Free visible contamination
2. QC Standard
3. FAQ:
1. Can you accept OEM?
Yes!above thickness 0.5mm wafers are OEM products
2. Can you deliver the goods via our shipping agent?
Yes, we could help you make the delivery using your shipping agent
3. What about your After-sales service?
Yes.We promise that we can change or refund products if there are any quality problem.
4.How about the delivery date?
commenly we have some standard size on stock as like 2inch R-axis, M-axis,A-axis ,C-axis
by thickness 0.43mm DSP and SSP. please understand~
if customized specifications in 4weeks.
If you need more professional help, please contact us. Our technical engineers
would like to give advices according to your requirements
we also provide other materials semiconductor wafer as likes SiC, GaN, GaAs, InP .
